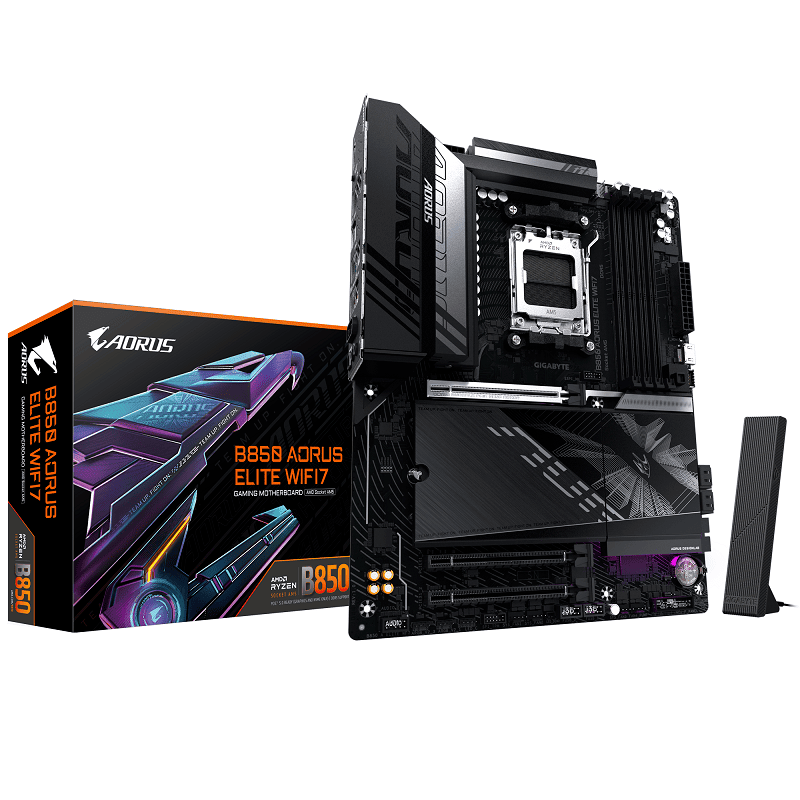

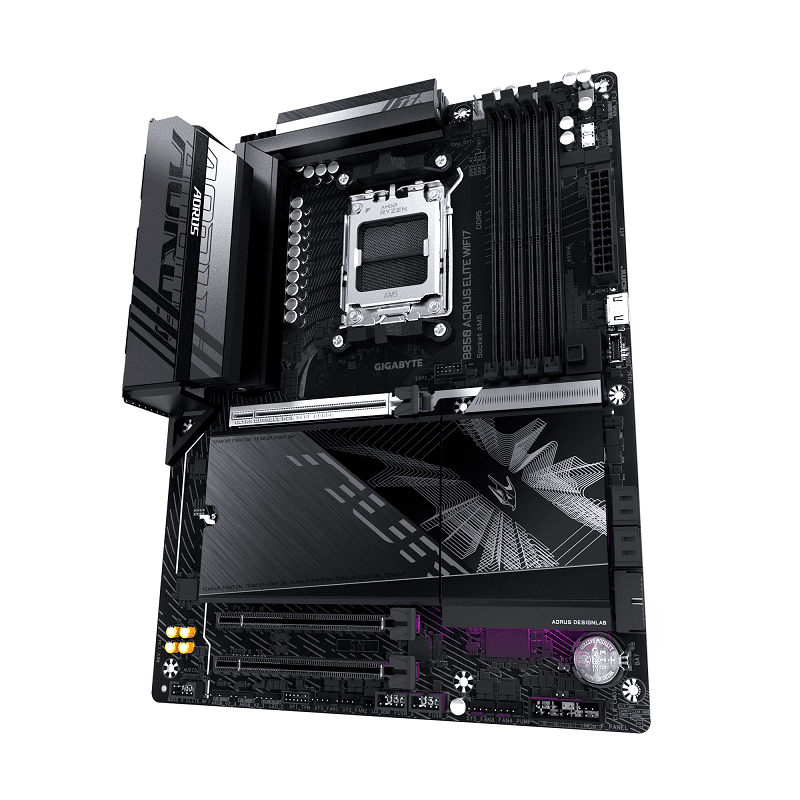

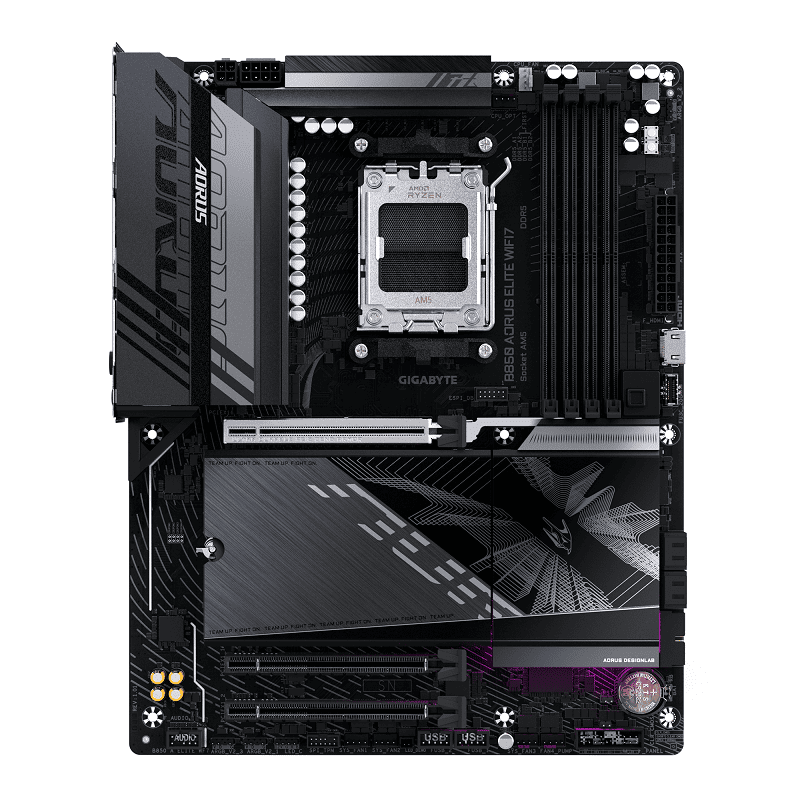

Placa Madre Gigabyte B850 Aorus Elite WIFI7 – AM5, DDR5, ATX

Descripción

Placa Madre Gigabyte B850 Aorus Elite WIFI7 – AM5, DDR5, ATX

• Procesador
  AMD Socket AM5, support for:
  AMD Ryzen™ 9000 Series Processors/
  AMD Ryzen™ 8000 Series Processors/
  AMD Ryzen™ 7000 Series Processors
  (Go to GIGABYTE’s website for the latest CPU support list.)
• Chipset
  AMD B850
• Memoria
  Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
  4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory
  Dual channel memory architecture
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
  (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to «Memory Support List» on GIGABYTE’s website for more information.)
• Gráficos Integrados
  Integrated Graphics Processor with AMD Radeon™ Graphics support:
  – 1 x DisplayPort, supporting a maximum resolution of 3840×2160@144 Hz
  * Support for DisplayPort 1.4 version and HDR.- 1 x Front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz
  * Support for HDMI 1.4 version

  (Graphics specifications may vary depending on CPU support.)

• Audio
  Realtek® Audio CODEC (Only for rev. 1.0)
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out

  Realtek® ALC1220 CODEC (Only for rev. 1.1)
  * The back panel line out jack supports DSD audio.

  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  Support for S/PDIF Out

• LAN
  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module
  Realtek® Wi-Fi 7 RTL8922AE
  – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
  – BLUETOOTH 5.4
  – Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
  * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
  ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations
• Puertos de Expansión
  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
  * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:
  – 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)

• Interfaz de Almacenamiento
  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
  1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
  AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
  1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
  4 x SATA 6Gb/s connectors
  RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
  * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB
  CPU:
  – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
  – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
  CPU+USB 2.0 Hub:
  – 4 x USB 2.0/1.1 ports on the back panel
  Chipset:
  – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
  – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
  – 4 x USB 2.0/1.1 ports available through the internal USB headers
  Chipset+USB 3.2 Gen 1 Hub:
  – 4 x USB 3.2 Gen 1 ports on the back panel
• Conectores Internos de E/S
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x 4-pin ATX 12V power connector
  1 x CPU fan header
  1 x CPU fan/water cooling pump header
  3 x system fan headers
  1 x system fan/water cooling pump header
  3 x addressable RGB Gen2 LED strip headers
  1 x RGB LED strip header
  3 x M.2 Socket 3 connectors
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
  1 x HDMI port*
  1 x power button
  1 x reset button
  1 x reset jumper
  1 x Clear CMOS jumper* Actual support may vary by CPU.

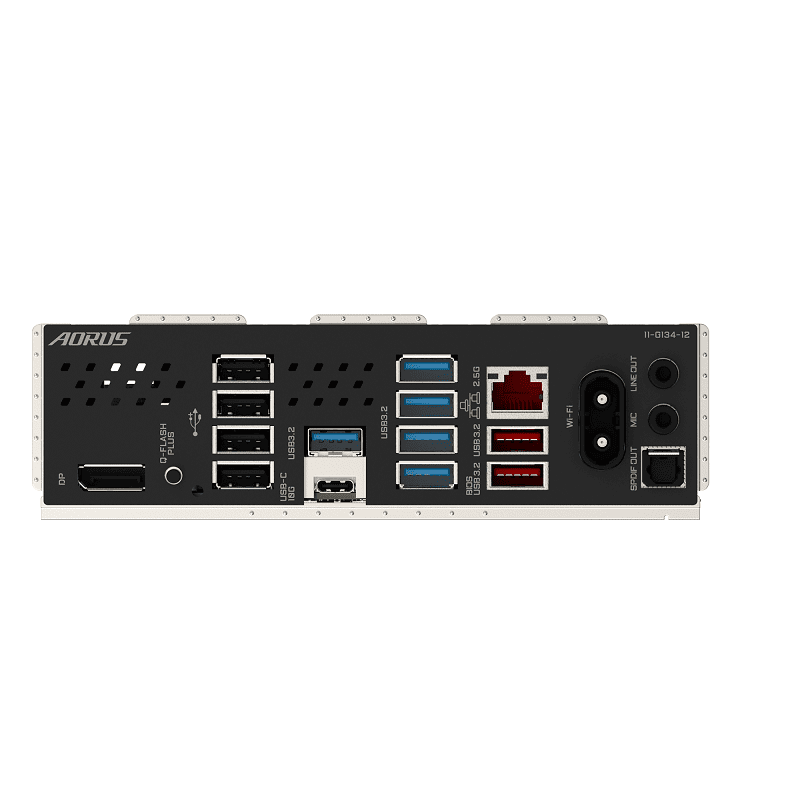

• Conectores del Panel Trasero
  1 x DisplayPort*
  1 x Q-Flash Plus button
  4 x USB 2.0/1.1 ports
  1 x USB Type-C® port, with USB 3.2 Gen 2 support
  5 x USB 3.2 Gen 1 ports
  1 x RJ-45 port
  2 x USB 3.2 Gen 2 Type-A ports (red)
  2 x antenna connectors (2T2R)
  2 x audio jacks
  1 x optical S/PDIF Out connector* Actual support may vary by CPU.

• Controlador de E/S
  iTE® I/O Controller Chip
• Monitorización H/W
  Voltage detection
  Temperature detection
  Fan speed detection
  Water cooling flow rate detection
  Fan fail warning
  Fan speed control
  * Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  Support for GIGABYTE Control Center (GCC)
  * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-Flash
  Support for Q-Flash Plus
  Support for Smart Backup

• Software Incluido
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Sistema Operativo
  Support for Windows 11 64-bit
• Diseño
  ATX Form Factor; 30.5cm x 24.4cm
