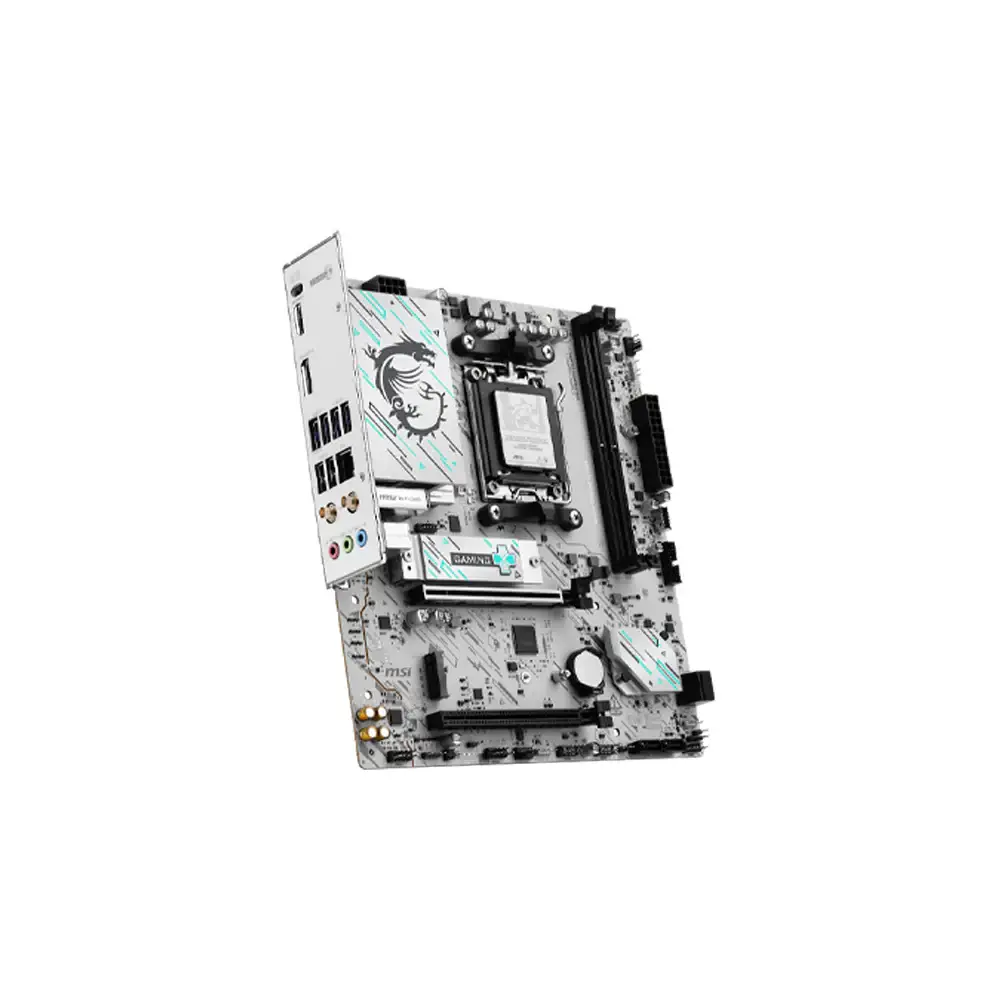

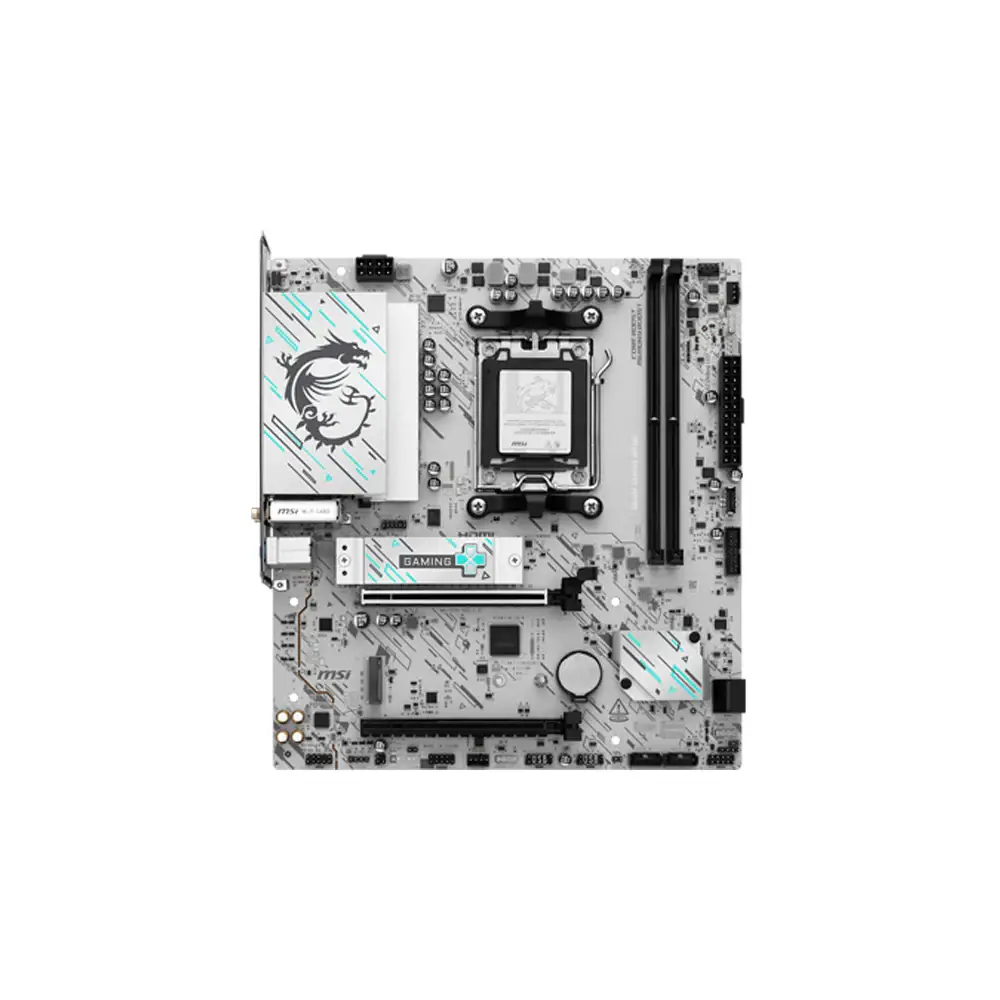

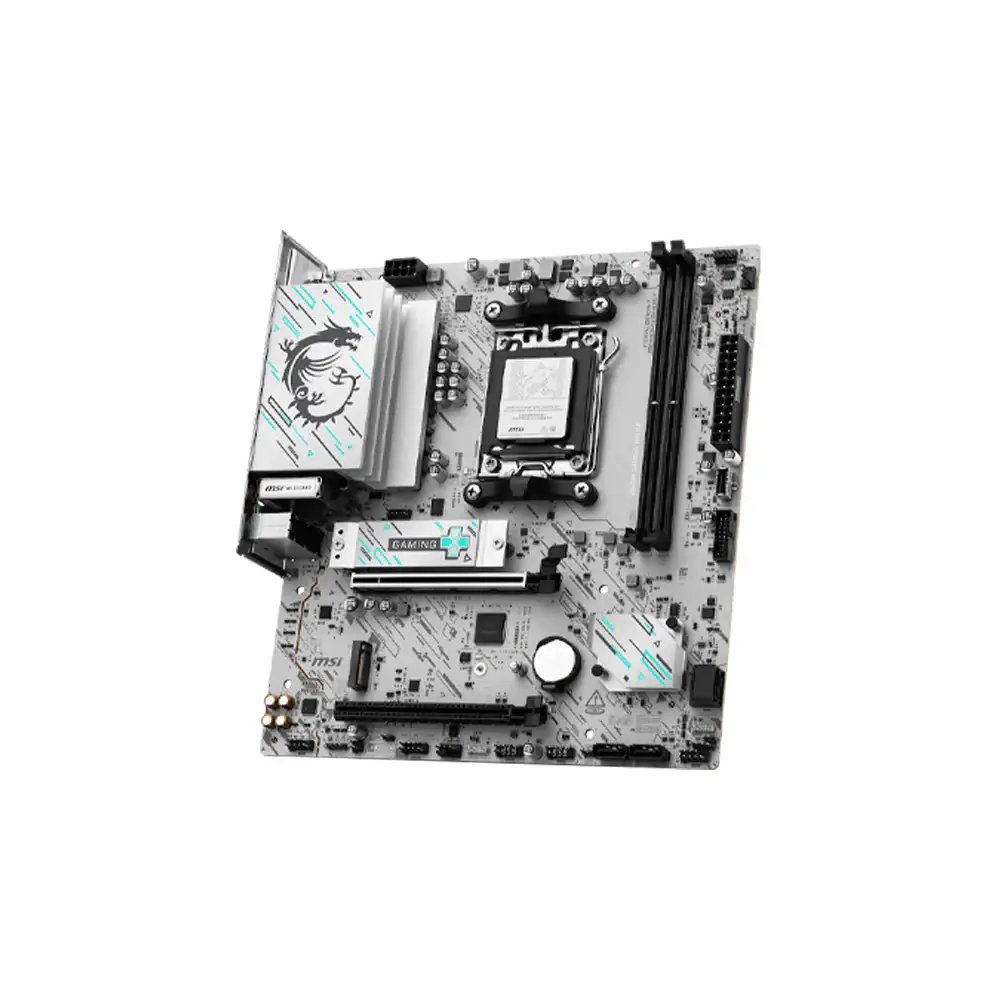

Placa Madre MSI B840M GAMING WIFI6E – AM5, M-ATX, DDR5 White
El precio original era: $156.990.$143.500El precio actual es: $143.500.
- Soporte de Procesador: Soporta procesadores de escritorio AMD Ryzen™ de las series 9000 / 8000 / 7000.
- Rendimiento Ultra: Sistema de alimentación 7+2+1 P-PAK, conector de alimentación de CPU de 8 pines, Core Boost (Aceleración de Núcleo), Memory Boost (Aceleración de Memoria), PCB de 6 capas con 2 onzas de cobre engrosado.
- Soporte de Memoria: Soporta Memoria DDR5, DDR5 de Doble Canal a más de 8200 MT/s (OC).
- Refrigeración (Frozr Guard): Disipador de calor extendido, almohadillas térmicas para MOSFET con una clasificación de 7W/mK, almohadillas térmicas adicionales para choques y el disipador M.2 Shield Frozr (diseñados para un rendimiento continuo y de alto nivel).
- Experiencia de Juego Ultrarrápida: Ranura PCIe 4.0, ranura M.2 Lightning Gen 4 x4, y USB Tipo-C frontal.
- Conectividad de Alta Velocidad: Wi-Fi 6E con LAN de 2.5G (la solución más reciente para uso profesional y multimedia, ofreciendo redes y transmisión de datos seguras, estables y de alta velocidad).
- EZ DIY (Montaje Fácil): Incluye EZ M.2 Clip II, EZ PCIe Clip II y EZ Antenna (clips y antena fáciles para simplificar el montaje).
- Audio Boost: Ofrece una calidad de sonido de nivel de estudio para la experiencia de juego más inmersiva.
➡️Efectivo/transferencia: $143.500
➡️Webpay/Otros medios de pago: $149.958
✅Producto para entrega inmediata o despacho a domicilio.
¡Date prisa! Solo quedan 4 en existencias.
Descripción
Placa Madre MSI B840M GAMING WIFI6E – AM5, M-ATX, DDR5
| Chipset | AMD B840 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 8000 – 5600 (OC) MT/s / 5600 – 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8000+ MT/s • 1DPC 2R Max speed up to 7200+ MT/sSupports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/. |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions. |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) |
| LAN | Realtek® 8125D 2.5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit |
